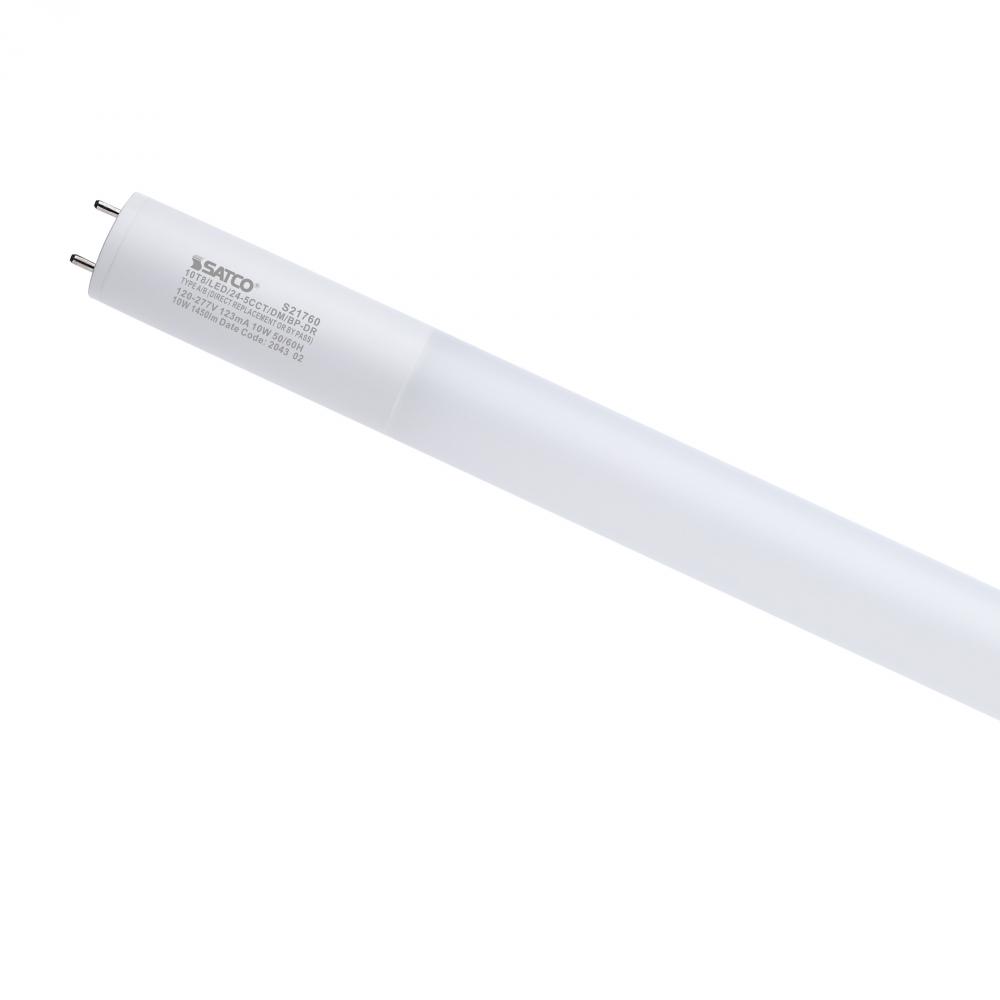

10 Watt T8 LED; 24-Inch; 30K/35K/40K/50K/65K CCT Selectable; G13 Base; Ballast Type A/B; Frost Finish; 120-277 Ranged Voltage; Glass with PET Coating
Bulb Dimmable:
Yes-Dimmable
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Harmonized Codes:
8539.52.0051
Warranty:
5 Year Limited - T8 LED Bulbs
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Burning Position:
Universal
Carton Cubic Feet:
0.0143
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Classification:
Standard
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Enclosed Fixture Use:
Yes
Feature 1:
Dual Mode Type A + B
Feature 2:
5 CCT Selectable
Feature 3:
Range Voltage 120V-277V
Feature 5:
170-Degree Beam Angle
Feature 8:
Damp Location Rated
Flourescent Equivalent:
15W/17W
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Long Description:
SATCO NUVO's LED T8 Lamps - Type A + B are versatile for use in ballast bypass or ballast compatible configurations. High-performing, these lamps are damp location rated for reliable use in humid areas. With five selectable CCTs at installation, and di
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Romance Copy:
SATCO NUVO's LED T8 Lamps - Type A + B are versatile for use in ballast bypass or ballast compatible configurations. High-performing, these lamps are damp location rated for reliable use in humid areas. With five selectable CCTs at installation, and di
Shatter Proof Text:
PET Coated
Short Description:
10T8/LED/24-5CCT/DM/BP-DR
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
20%
