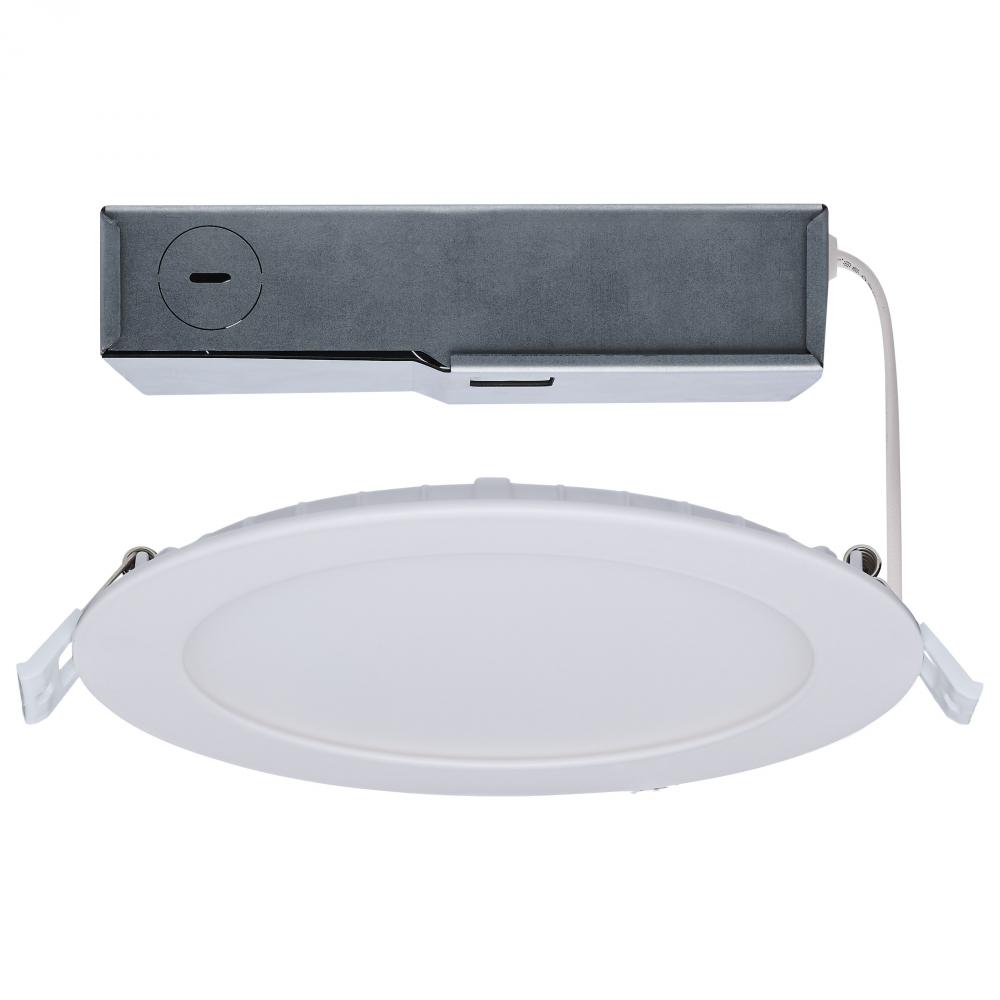

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat (X9NEH)

Image may not reflect selected features

No Image
Available

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat

BASE PRICE:

/ / 1

($31.90 / 1)

WAS

Call for Price

Item #:

X9NEH

Dimensions:

Height: 1.34"

Width: 6.77"

Finish:

White

Availability:

Manufacturer has 9109 items available.

Recommended Items

Description

Details

Downloads

11/15 Watt; LED Direct Wire Downlight; 27K/3K/35K/4K/5K CCT; Remote Driver; 6 Inch; Round; Flat Face; White Finish; 120-277 Volt; Dual Dimming

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

6.77

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Lumens:

1050L/1350L

Ship Carton Height:

6.89

Ship Carton Length:

6.81

Ship Carton Width:

2.48

Warranty:

5 Year Limited - Fixtures

Air Tight:

Yes

Amps:

0.092-0.040/0.125-0.054A

ANSI Base:

Integrated

Beam Spread:

108

CA Prop-65:

Lead

Carton Cubic Feet:

0.0673

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

6.19 in. Cutout

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Triac at 120V / 0-10V at 120-277V

Dimming Type:

Dual Dimming

Efficacy:

95.45/90.00 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-3994345

FCC Compliant:

Yes

Feature 1:

Wattage Selectable for High & Very High Outputs

Feature 10:

5 Year Warranty

Feature 2:

5 CCT Selectable from Warm to Natural Light

Feature 3:

Flat Face Design for Reduced Glare

Feature 4:

NEC Compliant Junction Box

Feature 5:

Dual Dimming

Feature 6:

FT6 Cable for Commercial Plenums

Feature 7:

90 CRI

Feature 8:

Wet Location Rated

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

85W

Indoor Outdoor:

Indoor and Outdoor

Installation Notes:

Plenum Rated FT6 Cable

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Acrylic

Long Description:

The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. The S11691 6-inch round model features field-selectable five CCT and two wattage options (11W/15W), delivering both high output (HO) and very high output (VHO)

Material:

Aluminum

Mounting Diameter:

6.18

Mounting Height:

1.61

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The SATCO NUVO Pro Series LED Slimfit Downlights offer exceptional versatility and performance. Featuring field-selectable CCT and wattage technology, these downlights provide high output (HO) and very high output (VHO) options, ensuring bright, efficient

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

15WLED/DW/6/FS/RND/FL/DD

Sloped Ceiling Compatible:

Yes

Specification Notes:

Default CCT Setting: 2700K; Default Wattage Setting: 15W

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Material:

Aluminum

Wattage Selectable:

Yes

Weight Lb.:

1.29
