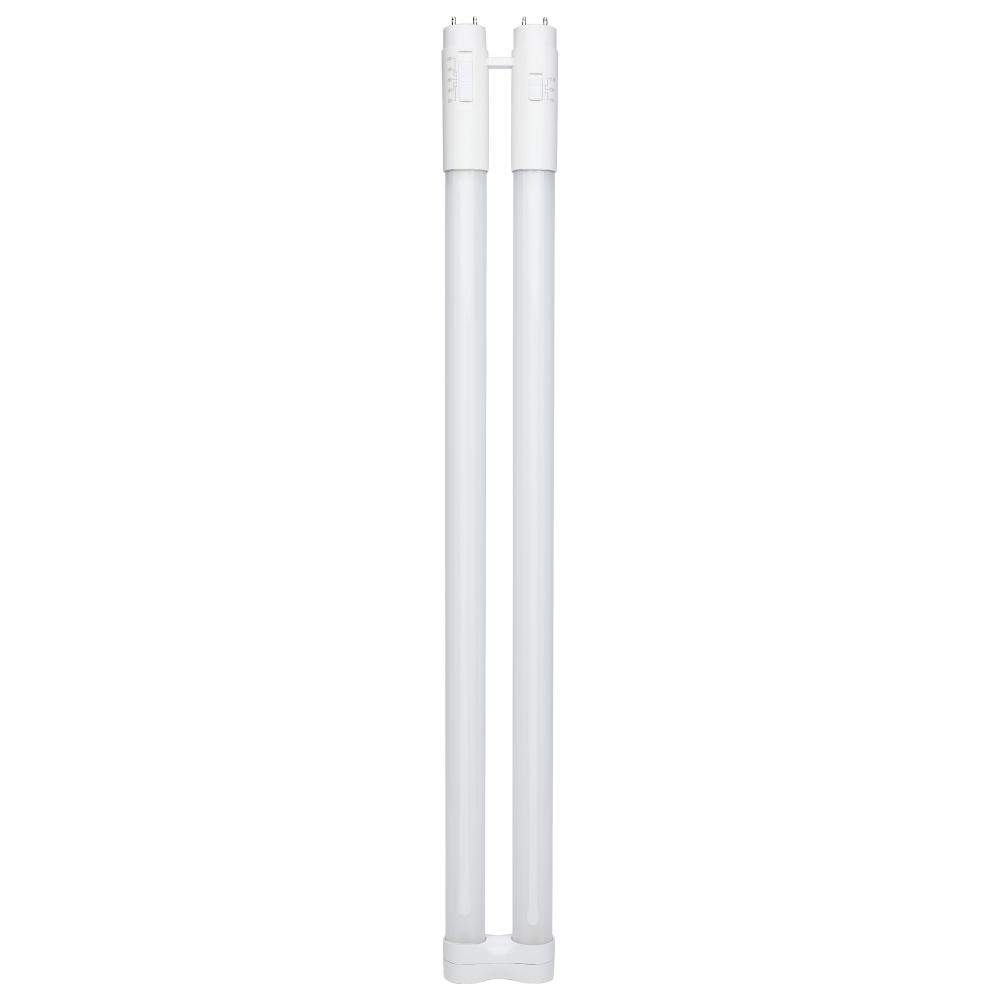

11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 1-Inch; Frost Finish; 120-277 Range Voltage
Sub-Category:
LED T8 U Bend
Bulb Dimmable:
Yes-Dimmable
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Harmonized Codes:
8539.52.0051
Lumens:
1800L/2000L/2200L
Warranty:
5 Year Limited - T8 LED Bulbs
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Carton Cubic Feet:
0.0198
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Classification:
Standard
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
156.52/153.85/146.67 LPW
Feature 1:
CCT and Wattage Selectable
Feature 2:
Type A/B Ballast Bypass
Feature 4:
Single and Double Ended Wiring
Feature 5:
Full Glass Housing
Feature 6:
1 Inch Leg Spacing
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Flourescent Equivalent:
32W
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Long Description:
SATCO NUVO's S18414 LED filament U-Bend lamp with 1-inch leg spacing, delivers versatile and efficient lighting solutions for a range of applications. This lamp consumes significantly less energy than its fluorescent counterpart and features a much lon
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Romance Copy:
SATCO NUVO offers LED filament U-Bend lamps with both 1-inch and 6-inch leg spacing, delivering versatile and efficient lighting solutions for a range of applications. These lamps consume significantly less energy than their fluorescent counterparts and fe
Short Description:
15T8/U1/LED/5CCT/DUAL
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
<20%
