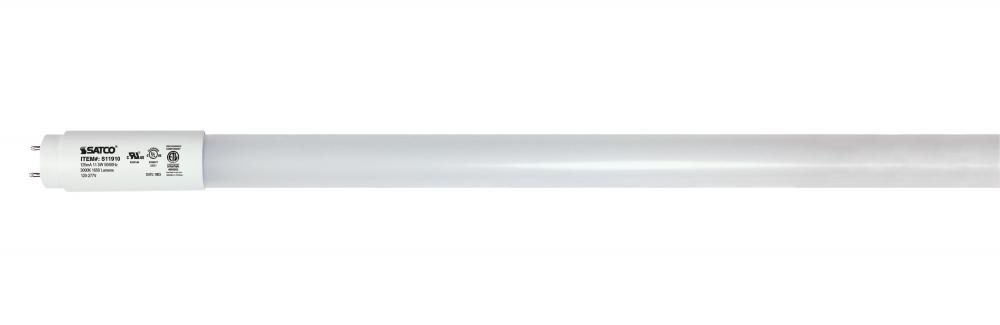

11.5 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; (LNG2G)

Image may not reflect selected features

No Image
Available

11.5 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B;

BASE PRICE:

/ / 1

($13.90 / 1)

WAS

Call for Price

Item #:

LNG2G

Dimensions:

Width: 1.00"

Finish Family:

White

Availability:

Manufacturer has 276 items available.

Description

Details

Downloads

11.5 Watt T8 LED; 3000K; Medium Bi Pin base; 50000 Average rated hours; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1601-2600

Kelvin:

2501-3000

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3000K

Bulb Shape:

Diameter:

EA Length:

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

1650L

Shap Carton Width:

7.56

Ship Carton Height:

4.92

Ship Weight:

0.85

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.85

Additional Info:

Installation protection - will not light if ballast is not bypassed.

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

180

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

1.0332

Cartons Per Unit:

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PL5CBTPA2PS9

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

143.48 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Warm white light

Feature 2:

Damp rated for indoor use

Feature 3:

Enclosed Rated Lamp

Feature 4:

L:48.00 D:1.00

Feature 5:

T8, Frosted Finish

Feature 6:

Flicker Free - Less than 2%

Flicker Free:

Yes

Flourescent Equivalent:

32W

Housing Color:

White

Incandescent Equivalent:

50W

Installation Notes:

Not for use in vapor tight fixtures. Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

White

Lens Material:

Glass

Location Rating:

Damp

Long Description:

SATCO NUVO's S11910 11.5-watt T8 LED frosted tubular bulb offers warm white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproo

Material:

Glass

Nominal Length:

NSF Approved:

ETL Sanitation listed (conforms to NSF)

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 11.5-watt T8 LED frosted tubular bulb offers warm white light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof prote

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

11.5T8/LED/48-830/LF/BP

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

11.5W
