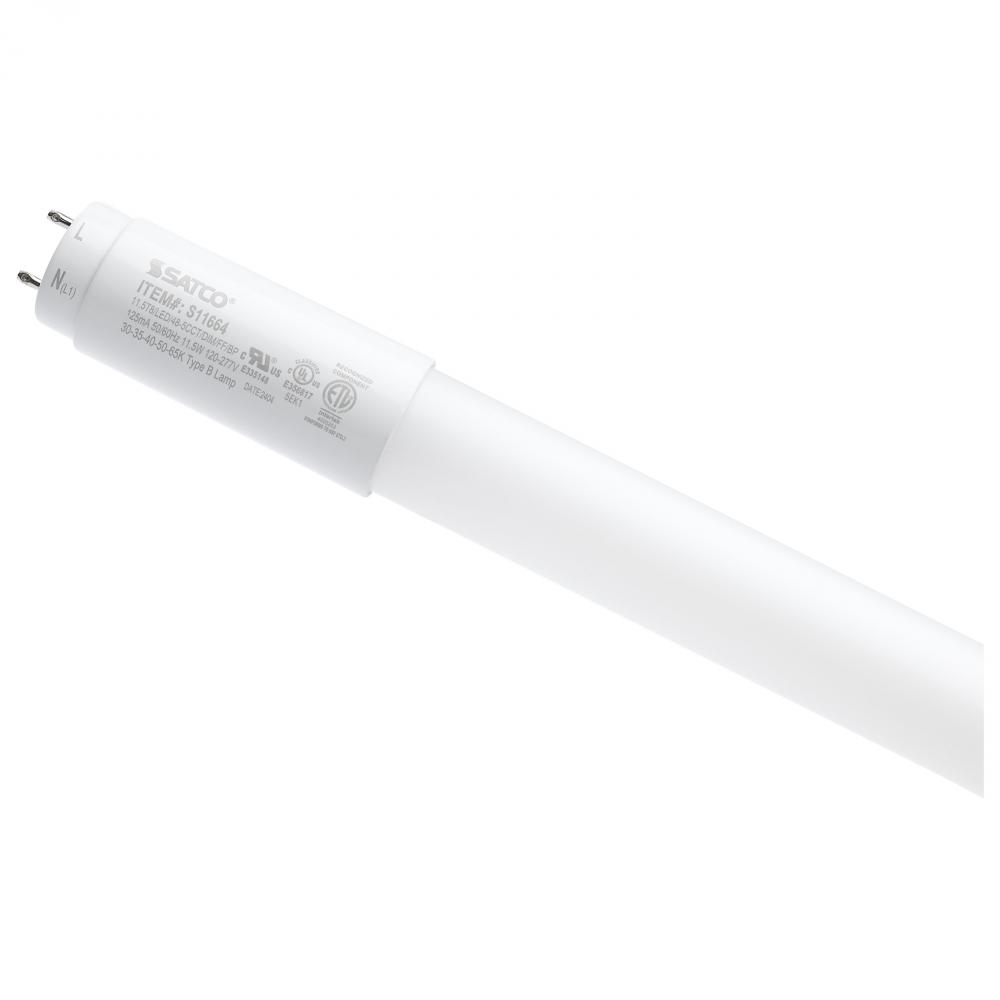

11.5 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%); (X6RL6)

Image may not reflect selected features

No Image
Available

11.5 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%);

BASE PRICE:

/ / 1

($13.90 / 1)

WAS

Call for Price

Item #:

X6RL6

Dimensions:

Width: 1.00"

Finish Family:

Frost

Availability:

Manufacturer has 143 items available.

Description

Details

Downloads

11.5 Watt T8 LED; 48 Inch; 30K/35K/40K/50K/65K CCT Selectable; Low Optical Flicker (less than 5%); Medium Bi Pin Base; Type B Ballast Bypass; 120-277 Volt; Frost Finish

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

Frosted

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

EA Length:

Harmonized Codes:

8539.52.0051

Length:

47.2

Lumens:

1700L/1750L/1800L/1800L/1750L

Shap Carton Width:

1.18

Ship Carton Height:

1.18

Ship Weight:

0.47

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.42

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required

Beam Spread:

160

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Carton Cubic Feet:

0.0387

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Reverse Phase or Phase Selectable

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-9MGCSL

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

147.83/152.17/156.52 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

4-ft

Feature 10:

5-CCT Selectable

Feature 2:

11.5W

Feature 3:

Feature 4:

Medium Bi-Pin Base

Feature 5:

PET Coated Shatterproof Glass

Feature 6:

120-277V Range Voltage

Feature 7:

Dimmable

Feature 8:

Type B Ballast Bypass

Feature 9:

Low Optical Flicker - Less than 2-percent flicker

Flicker Free:

Yes

Flourescent Equivalent:

32W

Housing Color:

White

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended;Single Ended

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's S11664 LED 4-foot, 11.5W Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Exte

Material:

Glass

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED Flicker-Free Lamps offer smooth, continuous light with less than 2-percent flicker. Ideal for use in offices, retail applications, and safe for use in commercial kitchens with the PET coated shatterproof tube. Extending the versatility

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

11.5T8/LED/48-5CCT/DIM/LF/BP

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Watts:

11.5W
