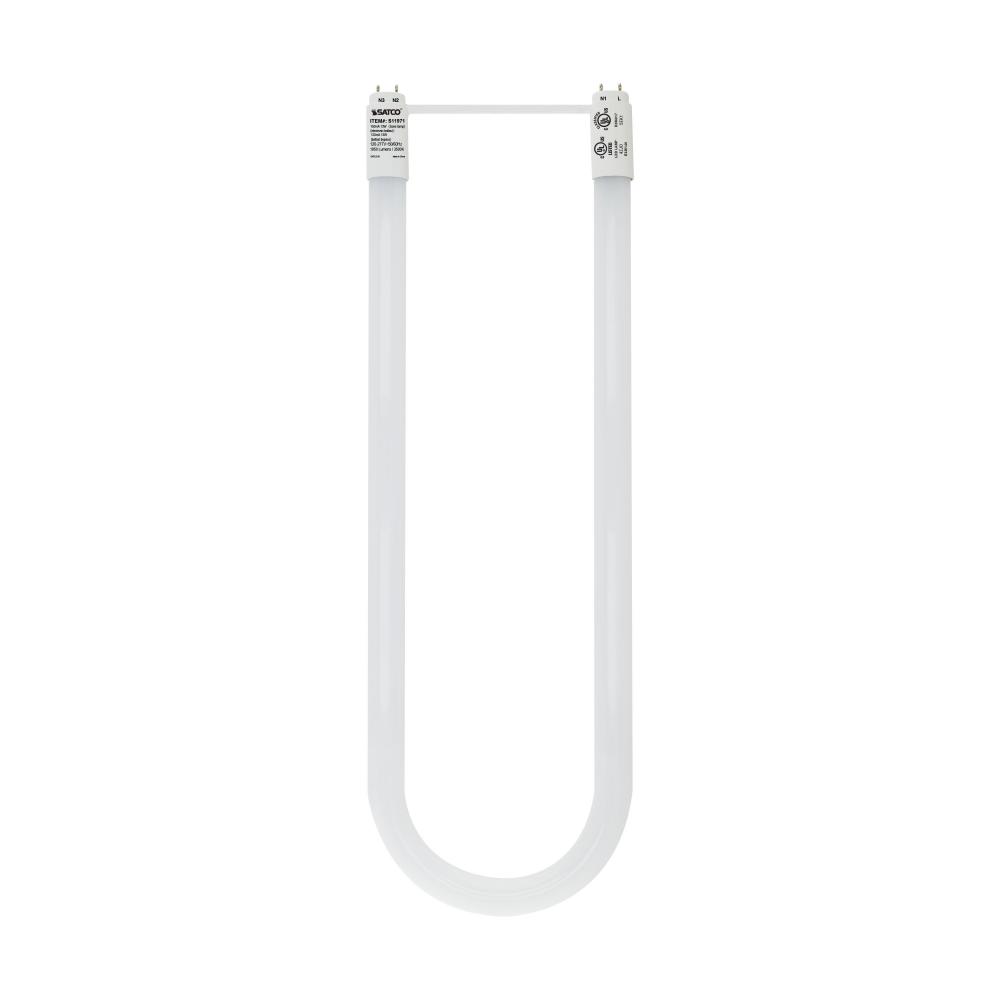

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast (LNG47)

Image may not reflect selected features

No Image
Available

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast

BASE PRICE:

/ / 1

($24.48 / 1)

WAS

Call for Price

Item #:

LNG47

Dimensions:

Width: 1.10"

Finish Family:

White

Availability:

Manufacturer has 83 items available.

Description

Details

Downloads

13 Watt T8 U-Bend LED; 50000 Hours; Medium bi-pin base; 1950 Lumens; 3500K; Type A/B; Ballast Dependent or Ballast Bypass; Single or Double Ended Wiring

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

1601-2600

Kelvin:

3501-4000

Wattage:

13w

Category:

LED

Sub-Category:

LED T8 U Bend

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3500K

Bulb Shape:

Diameter:

1.1

EA Length:

22.5

Harmonized Codes:

8539.52.0051

Length:

22.59

Lumens:

1950L

Shap Carton Width:

Ship Carton Height:

1.1

Ship Weight:

0.99

Warranty:

5 Year Limited - T8 LED Bulbs

Weight:

0.5

BAA Compliant:

Ballast Bypass Direct:

Dual

Ballasting Requirements:

Ballast required (Type A) or Ballast Bypass (Type B)

Beam Spread:

160

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Burning Position:

Universal

Carton Cubic Feet:

0.0859

Cartons Per Unit:

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Neutral White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Only in Type A mode; Check Ballast MFG for Dimmer Compatibility

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PLD6LILX58CD

DLC Primary Use:

Dual Mode Internal Driver (UL Type A and Type B)

Efficacy:

150.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

Up to 60 percent energy savings versus standard T8 systems

Feature 2:

Ballast compatible and ballast bypass in one lamp

Feature 3:

Bypass mode works in single or double ended wiring

Feature 4:

Shatterproof plastic

Feature 5:

Five year warranty

Feature 6:

DLC certified

Flourescent Equivalent:

32W

Housing Color:

White

Incandescent Equivalent:

50W

Installation Notes:

Not for use in vapor tight fixtures. Direct replacement for 32W/23T8/U6 lamps only

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type A/B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Leg Spacing:

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Location Rating:

Damp

Long Description:

SATCO NUVO's S11971 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium

Material:

Plastic

Nominal Length:

22.5

NSF Approved:

ETL Sanitation listed (conforms to NSF)

Operating Frequency:

50/60Hz

Operating Temp:

-25C (-13F) to +45C (+113F)

Pack Type:

Color Box

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium bi pin

SDS class:

LED_Lamp

Shatter Proof Text:

Yes

Short Description:

13T8U6/LED/22.5-835/DUAL

Style:

Utility

Surge Protection:

Built-in-surge protection - 0.7KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

20%

Tube Guard Use:

Yes

Wattage Selectable:

Watts:

13W
