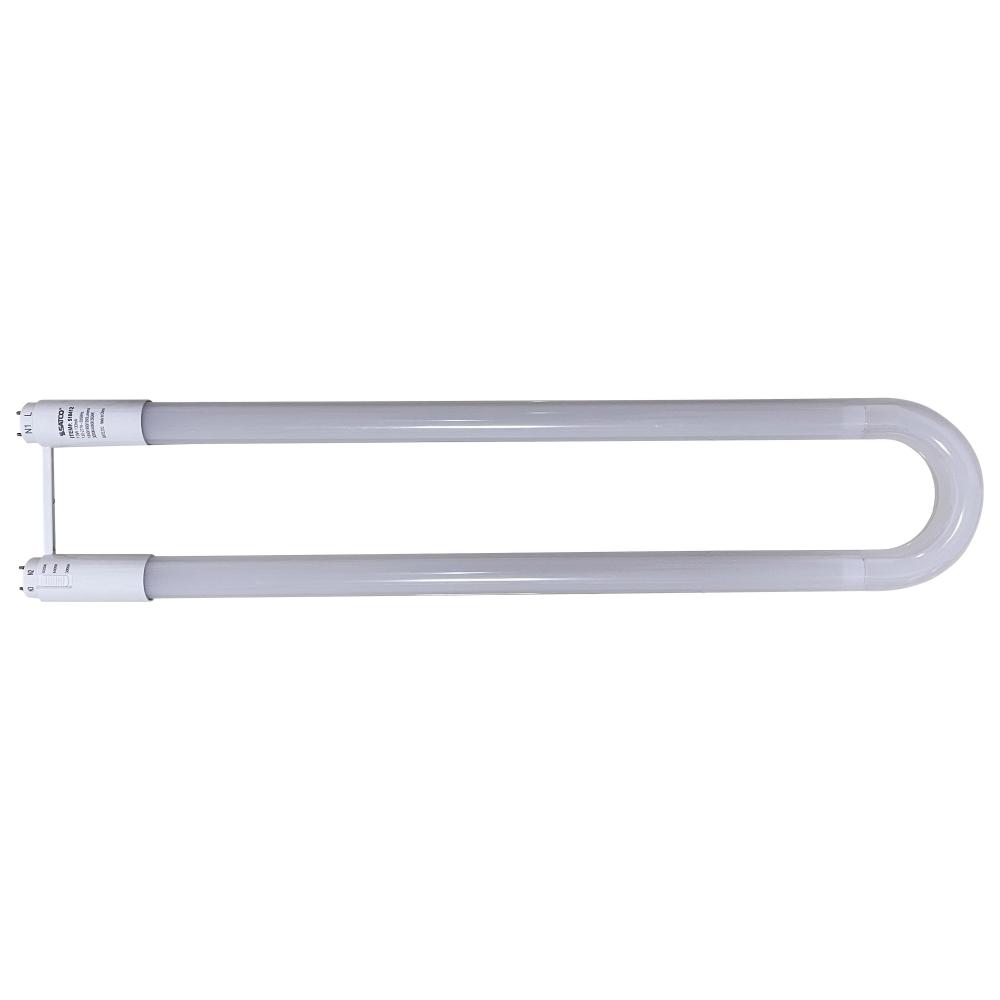

13 Watt T8 U-BEND LED; 50000 Hours; Medium Bi Pin Base; CCT Selectable; Type B; White Finish; 120-277 Volt
Sub-Category:
LED T8 U Bend
Bulb Dimmable:
Non-Dimmable
Bulb Kelvin:
3000K/4000K/5000K
Harmonized Codes:
8539.52.0051
Lumens:
1850L/1950L/1950L
Warranty:
5 Year Limited - T8 LED Bulbs
Additional Info:
Replaces FB34T12/U3
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Burning Position:
Universal
Carton Cubic Feet:
0.0736
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White to Natural Light
Efficacy:
142.31/150.00/150.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
Feature 1:
CCT Selectable
Feature 2:
Dual mode models compatible with ballast or in ballast bypass configurations
Feature 3:
Shatterproof tube
Feature 4:
Single or double-ended wiring when installed for ballast bypass operation
Feature 5:
Compatible with select emergency backup and dimming ballasts
Feature 6:
5-Year Warranty
Feature 7:
3 inch leg spacing
Feature 8:
Medium Bi Pin base
Flourescent Equivalent:
32W
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Long Description:
SATCO|NUVO'S S18412 LED T8 U-Bend lamp is CCT selectable to provide versatility in a range of applications. This 3-inch model is ballast bypass. This lamp can be easily installed with single-ended non-shunted sockets or double-ended shunted or non-shun
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Romance Copy:
SATCO|NUVO'S LED T8 U-Bend lamps are CCT selectable and available in 1 inch, 3 inch, and 6 inch models to provide versatility in a range of applications. 1 inch and 6 inch models are Dual Mode to operate in ballast bypass or ballast compatible configur
Short Description:
13T8/U3/LED/CCT/BP/SE-DE
Total Harmonic Distortion:
20%
