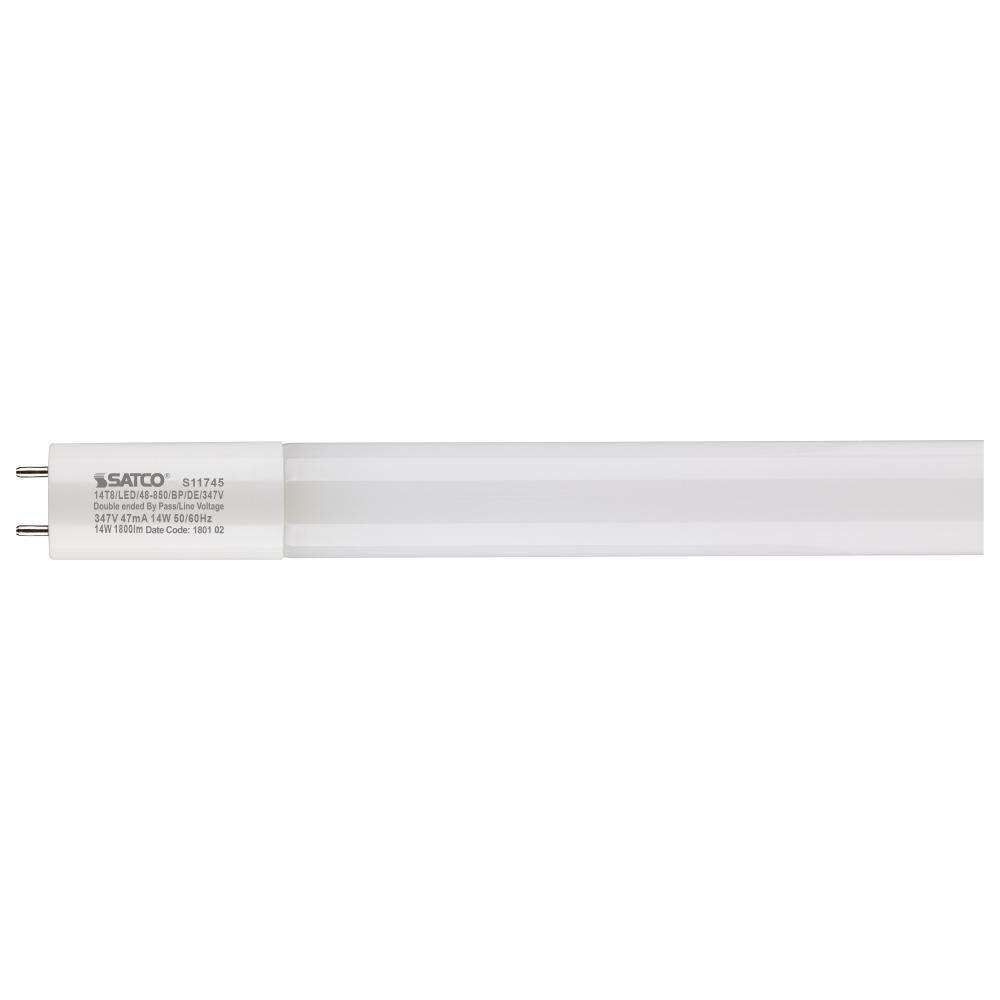

14 Watt; 4Ft LED T8; 5000K; 347V Canada Only; G13 Base; Type B Ballast Bypass; Double Ended Wiring
Harmonized Codes:
8539.52.0051
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Additional Info:
CANADA ONLY
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Burning Position:
Universal
Carton Cubic Feet:
0.0336
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
Feature 1:
Double ended wiring
Feature 2:
All glass tube
Feature 3:
Direct wire 347 line voltage - FOR USE IN CANADA
Feature 4:
Type B Ballast Bypass
Feature 5:
Damp location rated, for both indoor and outdoor use
Feature 6:
Long Life - 50,000 hours
Feature 8:
5000K CCT, 1800 lumens
Flourescent Equivalent:
32W
Has Emergency Battery:
No
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Long Description:
SATCO NUVO's S11745 14 watt, 4 foot, 5000K LED lamp is part of a new generation of Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps. These lamps are engineered for double-ended wiring and will not light unless
Minimum Compartment Size:
Length: 48.43 in. Width: 13.39 in. Height: 1.77 in.
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Romance Copy:
SATCO NUVO's new generation of Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps, are available in 4 foot lengths in a variety of wattages and lumens. These lamps are engineered for double-ended wiring and will
Short Description:
14T8/LED/48-850/BP/DE/347V
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
20%
