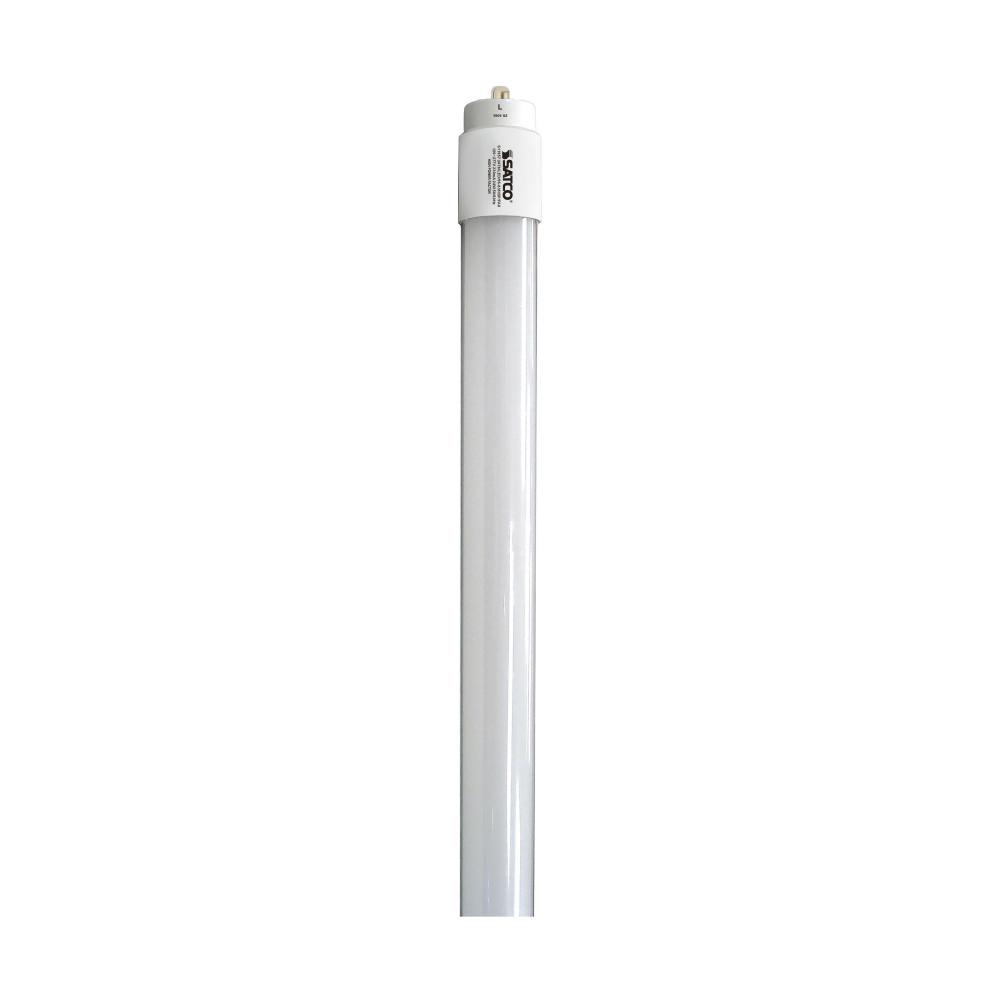

24 Watt; 8 Foot; T8 LED; Single pin base; 3500K; 50000 Average rated hours; 3200 Lumens; Type B; (LNG3T)

Image may not reflect selected features

No Image
Available

24 Watt; 8 Foot; T8 LED; Single pin base; 3500K; 50000 Average rated hours; 3200 Lumens; Type B;

BASE PRICE:

/ / 1

($33.90 / 1)

WAS

Call for Price

Item #:

LNG3T

Dimensions:

Width: 1.00"

Finish Family:

White

Availability:

Manufacturer has 89 items available.

Description

Details

Downloads

24 Watt; 8 Foot; T8 LED; Single pin base; 3500K; 50000 Average rated hours; 3200 Lumens; Type B; Ballast Bypass; Double Ended Wiring; DLC 5.1

Category:

Light Bulbs

Subcategory:

LED Bulbs

Finish:

White

Style:

Traditional

Lumens:

3001-3300

Kelvin:

3501-4000

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Hours:

50000

Bulb Kelvin:

3500K

Bulb Shape:

Diameter:

EA Length:

Harmonized Codes:

8539.52.0051

Length:

Lumens:

3200L

Shap Carton Width:

Ship Carton Height:

Ship Weight:

0.88

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.88

Additional Info:

Suitable for Emergency Lighting only with Satco EM Driver #S8002

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

210

Bulb ANSI Base:

Fa8

Bulb Base:

Single Pin

Bulb Finish:

White

Burning Position:

Universal

Carton Cubic Feet:

0.0544

Cartons Per Unit:

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Neutral White

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PLH6WO8M9CE8

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

133.33 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Feature 1:

MOL: 94.00 inches, MOD: 1.00 inch

Feature 2:

Superior 82 CRI light quality, 3200 lumens, 3500K CCT with a 210 beam spread

Feature 3:

Rated for enclosed fixtures

Feature 4:

Damp rated, for indoor use only

Feature 5:

24 watt LED replaces 59 watt fluorescent

Feature 6:

White finished linear glass lamp

Feature 7:

DLC Certified and qualifies for rebates where available

Feature 8:

5 year limited warranty

Flourescent Equivalent:

59W

Housing Color:

White

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Lens Finish:

White

Location Rating:

Damp

Long Description:

SATCO NUVO's S11957 24 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof prot

Material:

Glass

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Sleeve

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 24 watt T8 8 foot LED Type B single pin ballast bypass linear replacement bulb with emergency lighting and damp rating, are suitable in a number of commercial retrofit applications. The white bulb is PET coated for shatterproof protection.

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

24T8/LED/96-835/BP/FA8

Style:

Utility

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

20%

Wattage Selectable:

Watts:

24W
