LED Retrofit Downlight; 7.5/10.5/14.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; (X6PPZ)
$27.90
Call For Price
Enlarge Image
Add to Cart
Description:

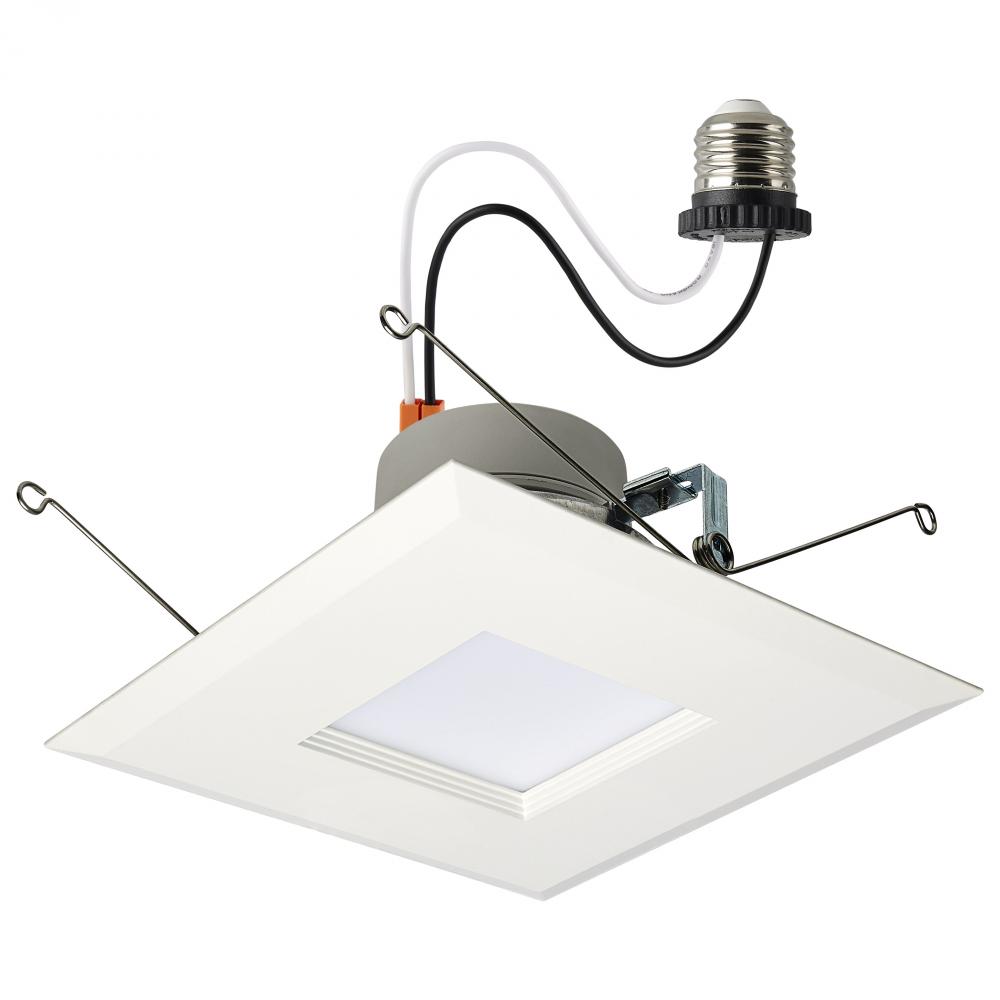

LED Retrofit Downlight; 7.5/10.5/14.5 Wattage Selectable; CCT and Lumens Selectable; 120 Volt; ColorQuick and PowerQuick Technology; Square; White Finish
Availability:
  • Manufacturer has 3651 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 3.37"
right arrow Width: 7.13"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Retrofits
right arrow Style: Utility
right arrow Bulb Hours: 50000
right arrow Bulb Shape: Integrated LED
right arrow Bulb Type: LED
right arrow Dimmable: Yes-Dimmable
right arrow Harmonized Codes: 8539.52.0091
right arrow Length: 7.13
right arrow Lumens: 750L/1050L/1300L
right arrow Ship Carton Height: 8.460000000000001
right arrow Ship Carton Length: 7.6
right arrow Ship Carton Width: 3.35
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: No
right arrow Amps: 0.063/0.088/0.121A
right arrow ANSI Base: E26 Adapter
right arrow BAA Compliant: No
right arrow Beam Spread: 90
right arrow CA Prop-65: Lead
right arrow Can Size: 5-6 in.
right arrow Carton Cubic Feet: 0.1246
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: California T24 2016 - 2022 JA8 Listed; T20 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Connection: Connector or Adapter
right arrow Country Of Origin: China
right arrow CRI: 90
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimming Type: Triac
right arrow Efficacy: 100.00/100.00/89.66 LPW
right arrow ES Category: Downlight Solid State Retrofit
right arrow ES Unique ID: ESID-2617828
right arrow FCC Compliant: Yes
right arrow Feature 1: Field Selectable (CCT and Wattage)
right arrow Feature 2: Stepped Baffle for Reduced Glare
right arrow Feature 3: 90 CRI
right arrow Feature 4: E26 Adapter Included
right arrow Feature 5: T20 and T24 Compliant
right arrow Feature 6: Aluminum Construction with Polycarbonate Lens
right arrow Feature 7: 50,000 Hour Functional Life
right arrow Finish Family: White
right arrow Fixture shape: Square
right arrow Has Driver: Yes
right arrow IC Rated: No
right arrow Incandescent Equivalent: 100W
right arrow Includes: E26 Adapter included (S9001)
right arrow Indoor Outdoor: Indoor
right arrow IOT Enabled: No
right arrow JA8 Compliant: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Polycarbonate (PC)
right arrow Long Description: SATCO|NUVO's new S18800, LED Field Selectable Retrofit Downlight, is the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows
right arrow Material: Aluminum ADC12
right arrow Operating Frequency: 60Hz
right arrow Operating Temprature: -20C (-4F) to +40C (+104F)
right arrow Pack Type: Color Box
right arrow Power Factor: 0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 60
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO|NUVO's LED Field Selectable Retrofit Downlights are the effortless solution for upgrading recessed lighting in your space. With two on-unit switches, the adjustment of both the input wattage and color temperature is a breeze and allows for the pe
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Fixture
right arrow Short Description: 14.5LED/RDL/5-6/WS/5CCT/SQ
right arrow Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
right arrow Title 20 Compliant: Yes
right arrow Title 24 Compliant: Yes
right arrow Trim Color: White
right arrow Wattage Selectable: Yes
right arrow Weight Lb.: 0.8100000000000001
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Recessed Lighting Trims
right arrow Standard Finish: White
right arrow Standard Option: Energy Star energy star.jpg , LED energy star.jpg , Prop 65 prop65.png
